Fluke 721 Pressure Calibration Instruments

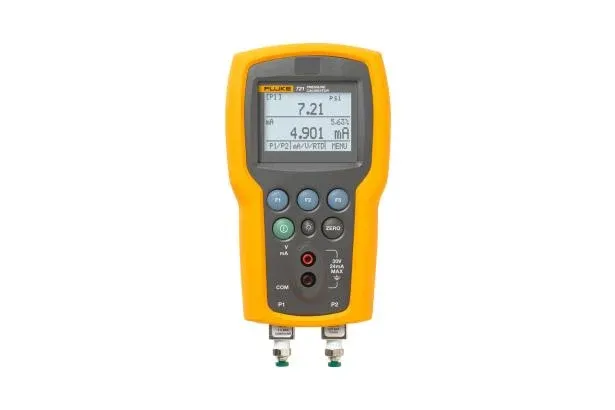

Fluke 721 Precision Pressure Calibrator provides pressure calibration and temperature measurement for custody transfer applications
The Fluke 721 Precision Pressure Calibrator is the ideal tool for gas custody transfer applications. It features dual isolated pressure sensors to allow you to take simultaneous static and differential pressure measurements with a single tool. And it can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then adding any of seven high pressure ranges: 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).
Other useful features:
- Measures up to 30 V DC, checks 24 V loop power supplies
- Extends pressure measurement range with connection to external 750P
- 750 series pressure modules (50 ranges)
- Provides a large backlit graphic display that can show up to three inputs simultaneously
- Stores five instrument setups for recall
The Fluke 721 Precision Pressure Calibrator is the ideal tool for gas custody transfer applications. It features dual isolated pressure sensors to allow you to take simultaneous static and differential pressure measurements with a single tool. And it can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then adding any of seven high pressure ranges: 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).
Other useful features:
- Measures up to 30 V DC, checks 24 V loop power supplies
- Extends pressure measurement range with connection to external 750P
- 750 series pressure modules (50 ranges)
- Provides a large backlit graphic display that can show up to three inputs simultaneously
- Stores five instrument setups for recall
Download
Produk Lainnya
Process calibration designed specifically for process industries
The Fluke 726 is a precise and powerful, yet easy-to-use, field calibrator. It features broad workload coverage, calibration power, and unsurpassed accuracy needed by process professionals. It measures and sources almost all process parameters to calibrate almost anything. Use it to test sensors and valves, and to test and calibrate transmitters. The 726 interprets results without the help of a calculator and stores measurement data for later analysis.
Measurement capabilities
This precision multifunction calibrator measures volts, mA, pressure, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters. The 726 also sources and simulates volts, mA, thermocouples, RTDs, frequency to calibrate transmitters. Measures and/or sources pressure using when paired with any of the 50 Fluke 750P series Pressure Modules to test and calibrate pressure transmitters and other devices. The 726 can also:
- Source mA with simultaneous pressure measurement to conduct valve and I/P test
- Conduct enhanced flowmeter testing with frequency totalizer and frequency pulse train source mode
Designed for ease of use
The 726 has built-in features that make it easier to use in nearly any measurement situation. From its ability to store frequently used test setups, to programming custom RTD probe calibration constants for enhanced temperature measurement, or the integrated voltage input protection design that improves reliability, the 726 is built to perform. The use of two separate channels even allows you to measure, source, or view process signals simultaneously. The backlit display provides better visibility in low-light conditions, and the standard 3-year warranty provides extra confidence that the 726 will be there when you need it to be.
You can also use the 726 to:
- Capture the set, reset, and deadband of a pressure switch with the integrated switch test
- Calculate the transmitter error % to interpret calibration results without the use of a calculator
- Perform fast linearity tests with the auto-step and auto-ramp features
- Power a transmitter during test using 24 V loop supply and simultaneous mA measurement
The Fluke 726 is a precise and powerful, yet easy-to-use, field calibrator. It features broad workload coverage, calibration power, and unsurpassed accuracy needed by process professionals. It measures and sources almost all process parameters to calibrate almost anything. Use it to test sensors and valves, and to test and calibrate transmitters. The 726 interprets results without the help of a calculator and stores measurement data for later analysis.
Measurement capabilities
This precision multifunction calibrator measures volts, mA, pressure, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters. The 726 also sources and simulates volts, mA, thermocouples, RTDs, frequency to calibrate transmitters. Measures and/or sources pressure using when paired with any of the 50 Fluke 750P series Pressure Modules to test and calibrate pressure transmitters and other devices. The 726 can also:
- Source mA with simultaneous pressure measurement to conduct valve and I/P test
- Conduct enhanced flowmeter testing with frequency totalizer and frequency pulse train source mode
Designed for ease of use
The 726 has built-in features that make it easier to use in nearly any measurement situation. From its ability to store frequently used test setups, to programming custom RTD probe calibration constants for enhanced temperature measurement, or the integrated voltage input protection design that improves reliability, the 726 is built to perform. The use of two separate channels even allows you to measure, source, or view process signals simultaneously. The backlit display provides better visibility in low-light conditions, and the standard 3-year warranty provides extra confidence that the 726 will be there when you need it to be.
You can also use the 726 to:
- Capture the set, reset, and deadband of a pressure switch with the integrated switch test
- Calculate the transmitter error % to interpret calibration results without the use of a calculator
- Perform fast linearity tests with the auto-step and auto-ramp features
- Power a transmitter during test using 24 V loop supply and simultaneous mA measurement
Compact smart pressure solution for on site or field
The Fluke 730G Smart Digital Pressure Calibrator combines the performance of a precision test gauge with the power of a loop calibrator and includes internal HART communication capabilities. When used with a pressure test pump, the Fluke 730G makes a highly efficient and highly accurate calibrator that can test pressure gauges, pressure switches and pressure transmitters, making it ideal for workshop instruments, measuring laboratories and pressure laboratories.
- Built-in HART communication: The integrated HART communication functionality is easy to use and you can customize HART directly, with no additional adjustment tools needed.
- Precision Pressure and Current Measurement: The 730G series provides high precision 0.02% pressure measurement accuracy and 0.01% flow measurement accuracy to meet laboratory pressure setting requirements and achieve accurate pressure calibration results.
- Intuitive operation and ease of use: High-end LCD screen and dual jack design provide a more practical and efficient user experience.
- Paperless testing and reporting: The optional 730G/PCSW management software enables paperless testing giving you the ability to automatically generate test reports and document results.
Fluke 730G/PCSW Software
- Paperless pressure calibration management: Record calibration data, perform calibration tests automatically and generate calibration reports.
- Asset management: Easily manage proven equipment and pressure standards.
- Supported pressure devices include: analog pressure gauges, digital pressure gauges, pressure transmitters, pressure sensors and pressure switches.
Increase your pressure testing capabilities with the
Fluke-700PTPK Pneumatic test pump kit:
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or less
- Generates pressures up to 600 psi (40 bar) with the 700PTP-1 test pump
- Connect the 730G Series meter directly to the included PTP-1 hand pump
- Includes hoses and adapters to connect the device to the pressure device to be tested
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
Fluke-700HTPK Hydraulic Test Pump Kit
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or higher
- Generates pressure up to 10000 psi (690 bar) with 700HTP-2 test pump
- Connect the 730G Series Meter directly to the HTP-2 hand pump
- Includes a 700HTH-1 hose and adapter for connecting to the pressure device to be tested.
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
The Fluke 730G Smart Digital Pressure Calibrator combines the performance of a precision test gauge with the power of a loop calibrator and includes internal HART communication capabilities. When used with a pressure test pump, the Fluke 730G makes a highly efficient and highly accurate calibrator that can test pressure gauges, pressure switches and pressure transmitters, making it ideal for workshop instruments, measuring laboratories and pressure laboratories.
- Built-in HART communication: The integrated HART communication functionality is easy to use and you can customize HART directly, with no additional adjustment tools needed.
- Precision Pressure and Current Measurement: The 730G series provides high precision 0.02% pressure measurement accuracy and 0.01% flow measurement accuracy to meet laboratory pressure setting requirements and achieve accurate pressure calibration results.
- Intuitive operation and ease of use: High-end LCD screen and dual jack design provide a more practical and efficient user experience.
- Paperless testing and reporting: The optional 730G/PCSW management software enables paperless testing giving you the ability to automatically generate test reports and document results.
Fluke 730G/PCSW Software
- Paperless pressure calibration management: Record calibration data, perform calibration tests automatically and generate calibration reports.
- Asset management: Easily manage proven equipment and pressure standards.
- Supported pressure devices include: analog pressure gauges, digital pressure gauges, pressure transmitters, pressure sensors and pressure switches.
Increase your pressure testing capabilities with the
Fluke-700PTPK Pneumatic test pump kit:
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or less
- Generates pressures up to 600 psi (40 bar) with the 700PTP-1 test pump
- Connect the 730G Series meter directly to the included PTP-1 hand pump
- Includes hoses and adapters to connect the device to the pressure device to be tested
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
Fluke-700HTPK Hydraulic Test Pump Kit
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or higher
- Generates pressure up to 10000 psi (690 bar) with 700HTP-2 test pump
- Connect the 730G Series Meter directly to the HTP-2 hand pump
- Includes a 700HTH-1 hose and adapter for connecting to the pressure device to be tested.
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
The Fluke 715 Volt/ mA Calibrator provides outstanding performance, durability and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrator is compact, lightweight and easy to transport. With a push button interface similar to the multifunctional Fluke 740 Series Documenting , the 715 is easy to use. It is EMI, dust, splash proof and has a removable battery cover for quick battery changes.
Fastest one-handed handheld tool for loop inspection
The Fluke 707 title="Loop Calibrator">Loop Calibrator is a high performance solution for calibrating, repairing, and maintaining current loops. The new "Quick Click" knob makes the tool extremely fast and easy to operate. The device features:
- One-handed user interface with "Quick Click" hold knob
- Source finding, simulation, and mA measurement
- 0.015% accuracy and 0.001 mA resolution
- Simultaneous display of mA and % of range
- Selectable stages or ramp results
- 24 V loop supply with mA measurement, including 250O HART resistor
- 0-28 VDC measurement to check Loop Voltage
- Easy battery replacement without opening the box
- Simple box with separate protective case
- Three year warranty
The Fluke 707 title="Loop Calibrator">Loop Calibrator is a high performance solution for calibrating, repairing, and maintaining current loops. The new "Quick Click" knob makes the tool extremely fast and easy to operate. The device features:
- One-handed user interface with "Quick Click" hold knob
- Source finding, simulation, and mA measurement
- 0.015% accuracy and 0.001 mA resolution
- Simultaneous display of mA and % of range
- Selectable stages or ramp results
- 24 V loop supply with mA measurement, including 250O HART resistor
- 0-28 VDC measurement to check Loop Voltage
- Easy battery replacement without opening the box
- Simple box with separate protective case
- Three year warranty
