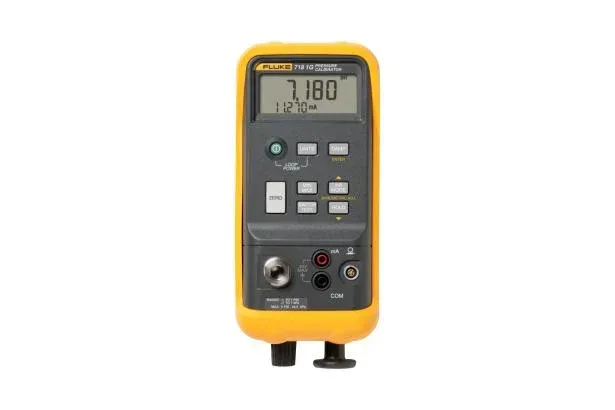

Fluke 718 Series Pressure Calibrators
The complete solution for pressure calibration
The Fluke 718 pressure calibrator set (4 models included) provides a complete pressure calibration solution for transmitters, gauges, and switches. This pressure calibration device is only about one-third the size of an average device and weighs just one kilogram (two pounds). The unique easy-to-clean pump helps protect the pump from damage and allows repair of the pump without disassembling it, even in the field.
The Fluke 718 pressure calibrator set (4 models included) provides a complete pressure calibration solution for transmitters, gauges, and switches. This pressure calibration device is only about one-third the size of an average device and weighs just one kilogram (two pounds). The unique easy-to-clean pump helps protect the pump from damage and allows repair of the pump without disassembling it, even in the field.
Download
Product Lainnya
The complete solution for pressure calibration
The Fluke 718 pressure calibrator set (4 models included) provides a complete pressure calibration solution for transmitters, gauges, and switches. This pressure calibration device is only about one-third the size of an average device and weighs just one kilogram (two pounds). The unique easy-to-clean pump helps protect the pump from damage and allows repair of the pump without disassembling it, even in the field.
The Fluke 718 pressure calibrator set (4 models included) provides a complete pressure calibration solution for transmitters, gauges, and switches. This pressure calibration device is only about one-third the size of an average device and weighs just one kilogram (two pounds). The unique easy-to-clean pump helps protect the pump from damage and allows repair of the pump without disassembling it, even in the field.
Fluke 750P31 Offers
Fluke 750P Series Pressure Modules are easy to use. To measure pressure, connect the pressure module to a pressure source or hand pump and then connect the pressure module cable to the calibrator. Apply pressure from the pressure source and it is displayed digitally on the calibrator. At the touch of a button, the pressure may be displayed in up to 11 different engineering units. When used with the 750 Series Documenting Process Calibrators, pressure readings can be date/time stamped and stored electronically for later retrieval. This saves time, eliminates errors, and supports F85compliance with quality standards and regulations.
Features
- Parameter/Range:0 to 10000 psi (0 to 700 bar)
- Burst Rating6:2x
- Hi Side Media2:316 SS
- Lo Side Media2:N/A
- Reference Uncertainty4:± 0.0175%
- Total Uncertainty 1-year (15-35°C):± 0.035%
- Total Uncertainty 1-year1:± 0.045%
- Total Uncertainty 6-month (15-35°C):± 0.03%
- Total Uncertainty 6-month1:± 0.04%
Fluke 750P Series Pressure Modules are easy to use. To measure pressure, connect the pressure module to a pressure source or hand pump and then connect the pressure module cable to the calibrator. Apply pressure from the pressure source and it is displayed digitally on the calibrator. At the touch of a button, the pressure may be displayed in up to 11 different engineering units. When used with the 750 Series Documenting Process Calibrators, pressure readings can be date/time stamped and stored electronically for later retrieval. This saves time, eliminates errors, and supports F85compliance with quality standards and regulations.
Features
- Parameter/Range:0 to 10000 psi (0 to 700 bar)
- Burst Rating6:2x
- Hi Side Media2:316 SS
- Lo Side Media2:N/A
- Reference Uncertainty4:± 0.0175%
- Total Uncertainty 1-year (15-35°C):± 0.035%
- Total Uncertainty 1-year1:± 0.045%
- Total Uncertainty 6-month (15-35°C):± 0.03%
- Total Uncertainty 6-month1:± 0.04%
Compact smart pressure solution for on site or field
The Fluke 730G Smart Digital Pressure Calibrator combines the performance of a precision test gauge with the power of a loop calibrator and includes internal HART communication capabilities. When used with a pressure test pump, the Fluke 730G makes a highly efficient and highly accurate calibrator that can test pressure gauges, pressure switches and pressure transmitters, making it ideal for workshop instruments, measuring laboratories and pressure laboratories.
- Built-in HART communication: The integrated HART communication functionality is easy to use and you can customize HART directly, with no additional adjustment tools needed.
- Precision Pressure and Current Measurement: The 730G series provides high precision 0.02% pressure measurement accuracy and 0.01% flow measurement accuracy to meet laboratory pressure setting requirements and achieve accurate pressure calibration results.
- Intuitive operation and ease of use: High-end LCD screen and dual jack design provide a more practical and efficient user experience.
- Paperless testing and reporting: The optional 730G/PCSW management software enables paperless testing giving you the ability to automatically generate test reports and document results.
Fluke 730G/PCSW Software
- Paperless pressure calibration management: Record calibration data, perform calibration tests automatically and generate calibration reports.
- Asset management: Easily manage proven equipment and pressure standards.
- Supported pressure devices include: analog pressure gauges, digital pressure gauges, pressure transmitters, pressure sensors and pressure switches.
Increase your pressure testing capabilities with the
Fluke-700PTPK Pneumatic test pump kit:
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or less
- Generates pressures up to 600 psi (40 bar) with the 700PTP-1 test pump
- Connect the 730G Series meter directly to the included PTP-1 hand pump
- Includes hoses and adapters to connect the device to the pressure device to be tested
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
Fluke-700HTPK Hydraulic Test Pump Kit
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or higher
- Generates pressure up to 10000 psi (690 bar) with 700HTP-2 test pump
- Connect the 730G Series Meter directly to the HTP-2 hand pump
- Includes a 700HTH-1 hose and adapter for connecting to the pressure device to be tested.
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
The Fluke 730G Smart Digital Pressure Calibrator combines the performance of a precision test gauge with the power of a loop calibrator and includes internal HART communication capabilities. When used with a pressure test pump, the Fluke 730G makes a highly efficient and highly accurate calibrator that can test pressure gauges, pressure switches and pressure transmitters, making it ideal for workshop instruments, measuring laboratories and pressure laboratories.
- Built-in HART communication: The integrated HART communication functionality is easy to use and you can customize HART directly, with no additional adjustment tools needed.
- Precision Pressure and Current Measurement: The 730G series provides high precision 0.02% pressure measurement accuracy and 0.01% flow measurement accuracy to meet laboratory pressure setting requirements and achieve accurate pressure calibration results.
- Intuitive operation and ease of use: High-end LCD screen and dual jack design provide a more practical and efficient user experience.
- Paperless testing and reporting: The optional 730G/PCSW management software enables paperless testing giving you the ability to automatically generate test reports and document results.
Fluke 730G/PCSW Software
- Paperless pressure calibration management: Record calibration data, perform calibration tests automatically and generate calibration reports.
- Asset management: Easily manage proven equipment and pressure standards.
- Supported pressure devices include: analog pressure gauges, digital pressure gauges, pressure transmitters, pressure sensors and pressure switches.
Increase your pressure testing capabilities with the
Fluke-700PTPK Pneumatic test pump kit:
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or less
- Generates pressures up to 600 psi (40 bar) with the 700PTP-1 test pump
- Connect the 730G Series meter directly to the included PTP-1 hand pump
- Includes hoses and adapters to connect the device to the pressure device to be tested
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
Fluke-700HTPK Hydraulic Test Pump Kit
- Combine with Fluke-730G Series Gauge, 1000 psi (69 bar) or higher
- Generates pressure up to 10000 psi (690 bar) with 700HTP-2 test pump
- Connect the 730G Series Meter directly to the HTP-2 hand pump
- Includes a 700HTH-1 hose and adapter for connecting to the pressure device to be tested.
- The hardened carrying case protects the pump and gauge and allows the gauge to remain connected to the pump
Fluke 729 Pro Automatic Pressure Calibrator not only simplifies pressure calibration but saves time, reduces errors and improves accuracy. With plug-in replaceable pressure control modules, the pressure generation and regulation could be up to 1000psi, 7Mpa.
- Fluke 729Pro Automatic Pressure Calibrator 600 psi
- FLK-PMM-4000K
- FLK-PMM-200K (Optional)
- FLK-PMM-200KA (Optional)
- FLK-PMM-2000K (Optional)
- Fluke 729Pro Automatic Pressure Calibrator 600 psi
- FLK-PMM-4000K
- FLK-PMM-200K (Optional)
- FLK-PMM-200KA (Optional)
- FLK-PMM-2000K (Optional)
